2N Access Unit 2.0
Do you need a good-looking access reader for your project? All the residents of luxury residences will be delighted with the 2N Access Unit 2.0. Select modern access with a mobile phone or fingerprint. Do you prefer conventional methods? We also offer an RFID card reader or keypad. Cannot decide? Select a combination of several methods in one device. But don’t look for controllers in our portfolio. They are already an integral part of every reader.
- Ideal for residential projects
- Fastest Bluetooth technology
- You don’t need a controller
Features & benefits
Versions
Technical Specifications
Power Supply
| Type | PoE and/or 12 V/1 A DC |
| PoE | 802.3af (Class 0–12.95 W) |
Interfaces
| LAN | 10/100BASE-TX with Auto-MDIX, RJ-45 modular jack, 2N Access Unit Bluetooth has terminal block or pigtail RJ-45 |
| Recommended Cabling | Cat-5e or better |
| Active Switch Output | 8 to 12V, DC, max 600mA |
| Passive Switch | NO/NC contacts, 30V, 1A, AC, DC |
| Inputs | 2 inputs – in passive / active mode(-30 VDC to + 30 VDC), OFF = open or Uin> 1.5V / ON = short-circuit or Uin< 1.5V, 2N Access Unit Bluetooth has 3 inputs |
| Tamper Switch | inbuilt |
| Audio | buzzer, 97dB |
| Supported Protocols | DHCP opt. 66, SMTP, TFTP, HTTP, HTTPS, Syslog |
Bluetooth Reader
| Version | compatible with Bluetooth 5.0 LE |
| Range | short - typically up to 3m, long - typically up to 10m distances should serve only as an approximate guide and may vary depending on the phone model and installation environment |
| Security | RSA-1024 and AES-128encryption |
| RX Sensitivity | up to -93dB |
| Mode | touch, tap in app |
Touch Keypad
| Technology | capacitive touch technology, high touch layer sensitivity (0.1pF) |
| Reliabilit | regular automatic calibration (SmartSence Auto-tunning), does not detect false touches on wet surface |
| Signalling | configurable backlight intensity, indication using multicoloured LEDs, acoustic response for every keypad touch |
Fingerprint Reader
| Sensor | optical sensor protected by resistant glass |
| Reliability | algorithm for fake fingerprint detection |
| Resistance | resistant to water and dust |
| Signalling | acoustic and multicoloured LEDs |
| Certification | certified according to FBI standard |
| Sensing Area | large with dimensions of 15.24 x 20.32mm |
Mechanical Properties
| Frame | robust zinc cast frame with surface finish (nickel and black color) |
| Operating temperature | -40 to 60°C |
| Storage temperature | -40 to 70°C |
| Operating relative humidity | (non-condensing) 10 - 95% |
Dimensions
| Wall (Surface) Mounting Frame | 1 module 107 (W) x 130 (H) x 28 (D) mm |
| Flush Mounting Frame | 1 module 130 (W) x 153 (H) x 5 (D) mm |
| Flush Mounting Box (Minimum Hole) | 1 module 108 (W) x 131 (H) x 45 (D) mm |
| Weight | 0.8kg |
| Cover Rating | IP54 and IK08 |
General
| Extension modules | Android 6.0 and higher, iOS 12.0 and higher |
| Mobile application support | 2N Access Unit 2.0 supports all modules from the 2N IP Verso intercom:, keypad, fingerprint, I/O module, Wiegand, etc. |
Downloads
Accessories

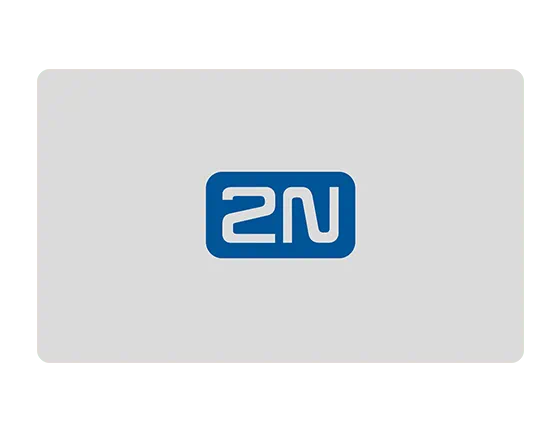

EMarine RFID card 125 kHz
Show more
EMarine RFID key fob 125 kHz
Show more
External RFID Reader 125kHz Emarine – USB interface
Show more
External RFID Reader 13.56MHz + 125kHz – USB interface, PICard compatible
Show more
External Seos® Compatible RFID reader 13.56MHz + 125kHz – USB interface, PICard compatible
Show more
Mifare RFID card 13.56MHz
Show more
Mifare RFID key fob 13.56MHz
Show more

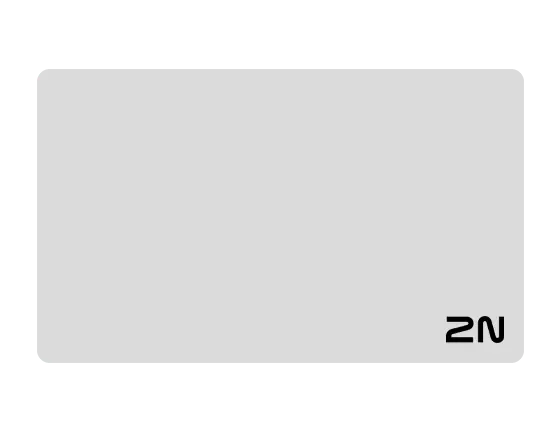

RFID card Mifare Desfire EV3 4K 13.56MHz, PICard compatible – 10pcs
