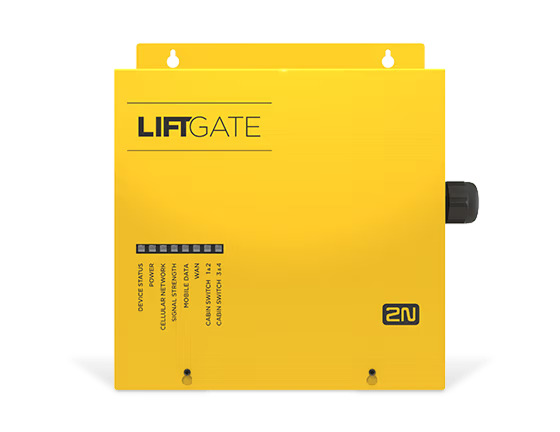

2N LiftGate
The 2N LiftGate IoT gateway will transform a regular elevator into a modern IP solution for the 21st century. Plus, you needn’t worry if there’s a UTP cable in the elevator. IP connectivity in the elevator is secured using 2 wires in the travelling cable. 2N LiftGate combines the functions of an LTE router, a backup power supply, a converter (2-wire to IP) and a switch all in one unit. Install just 1 product instead of 4 and save time and money.
- IP connectivity over 2-wire
- Backup power supply
- All in one IoT device
Features & benefits
Versions
Technical Specifications
Power Supply
| Voltage | 100 - 230V AC |
| Frequency | 50/60Hz |
| Power In | 65W, for 2x Cabin Switch |
| Backup Power Supply | built-in lead-acid battery, 12V, 9A, included |
Cellular Network
| GSM Bands | EU (EGSM 900 MHz, GSM 1800 MHz), AU (EGSM 850/900 MHz, GSM 1800/1900 MHz) |
| UMTS Bands | EU (850/900/2100 MHz), AU (850/900/1900/2100 MHz), US (850/1700/1900 MHz) |
| LTE Bands | EU (B1, B3, B5, B7, B8, B20), US (B2, B4, B5, B12, B13, B14, B66, B71), AU (B1, B3, B5, B7, B28, B40) |
| SIM Card | 2 slots, (U)SIM, 1.8V, 3V |
Antenna
| Number | 2x (Main and Diversity) |
| Impedance | 50Ω |
| Connector Type | F-SMA |
Interfaces
| LAN | 4x RJ-45, 1 Gbps (1x WAN, 3x LAN) |
| Supported Protocols | IPv4, IPv6, ICMP, DNS, DHCP opt. 66, NAT, HTTP, HTTPS, WS, NTP, OpenVPN, Syslog |
| Inputs | 2x 0 - 24 V (low level 0-2 V, high 4-24 V) |
| Relay Output | 2, NO and NC contact, COM terminal block, max. 30 V / 1 A DC, max. 125 V / 0.3 A AC |
Mechanical Properties
| Operating temperature | -20° to 50°C |
| Dimensions (W x H x D) | 270 × 240 × 80 mm |
| Cover Rating | IP20 |
| Weight | 4.7 kg with battery, 2.2 kg without battery |
