STE2 PLUS

STE2 PLUS is a professional LAN & WiFi remote sensors monitoring product. You can connect external sensors (up to 15 values) to 2x RJ11 ports. External detectors can be connected to 2x DI (Digital Input). The STE2 PLUS is a professional product with HTTPS custom certificates, SNMPv3SNMP Traps and IPv6.

The STE2 PLUS package includes a power adaptor and 3m outdoor temperature sensor for remote temperature measurement. The device can be connected to the network via WIFI or LAN (RJ45) with PoE power support.

Sensor values are displayed via the device’s web interface, in API (SNMP or XML) on the Portal or on the mobile/tablet screen (HWg Monitor).

Register as a partner to view pricing information and get exclusive access to our product catalog. Register as Partner
Get a Quote

Technical specifications

Protocols

HTTP Yes
HTTPS Yes
DHCP Yes
SNMP SNMP v1 + SNMP v3
SNMP trap Yes
SNTP Yes
SMTP Yes
SMTP TLS Yes
XML Yes
HWg-Push (SensDesk) Yes
MQTT No
IPv6 Yes
Modbus/TCP No
Syslog Yes
Net-GSM (SMS GW) Yes

Sensors

1-Wire values 15
Number of 1-Wire ports 2
M-BUS items 0
M-BUS meters 0
RFID reader 0
Comm monitor No
Virtual Values (conversions) No
Calibration-shift Yes
RS-485 values 0

Alarms

E-mail destinations: 5
E-mail templates: No
SMS dest.: 5
SMS templates: No
Trap destinations: 5
Group Alarm: No
Alarm reminder: Yes
Periodical status: Yes
Alarm escalation: No

Interface

Ethernet 10/100Mbit
WiFi IEEE 802.11bgn
Mobile networks No
Wiegand No
1-Wire Yes
RS-232 No
RS-485 No
Antenna Internal

Power and Dimentions

Power supply (Jack) Power supply: t 5V Consumption: t 300mA
Power supply (Ethernet) Power supply: t PoE Consumption: t 60mA
PoE/48V Yes
Operating environment -10°C – 60°C / 0%RH – 95%RH
Storage environment -30°C – 60°C / 0%RH – 95%RH
Dimensions 98 x 68 x 33 (WxHxD) / 91g
Warranty 24 months

Type

Environment SoHo, IT

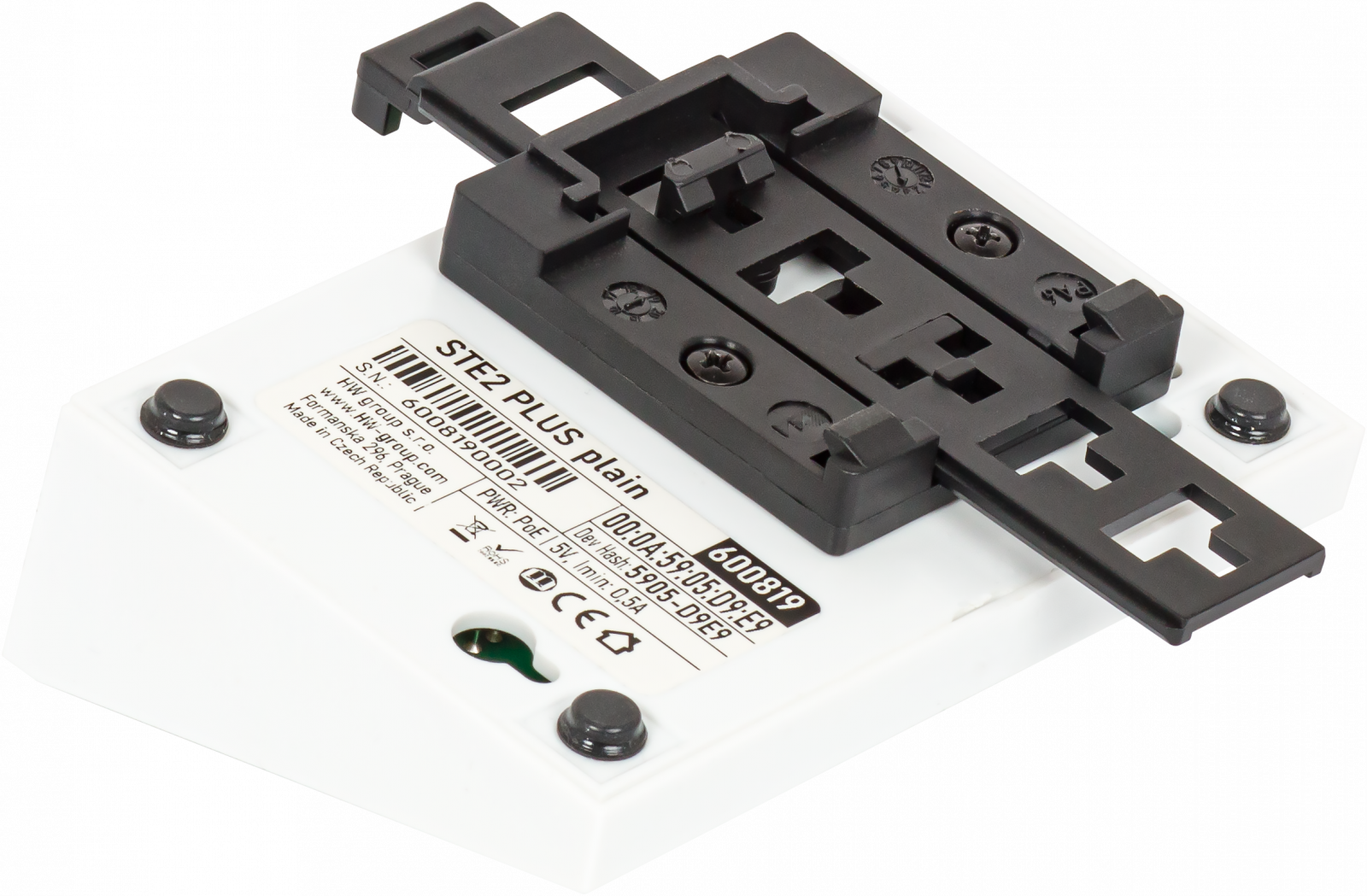

Installation DIN, Table
IP Rating IP40
Housing Plastic

Other

Logger size Not supported
SWITCH No
Virtual Serial Port No
Configuration Web
